Precise masterbatch dosing for consistent product quality
High-accuracy hybrid stepping motor with wide output range. Direct drive design without gearbox ensures long service life and maintenance-free operation.

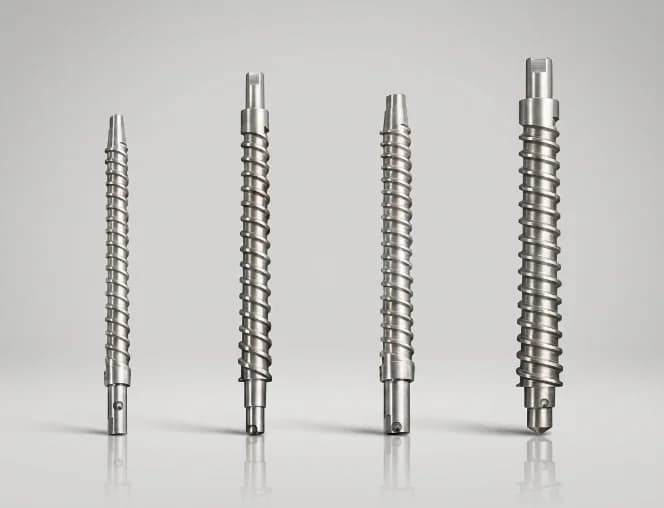

SUS304 stainless steel screw for superior durability and corrosion resistance.

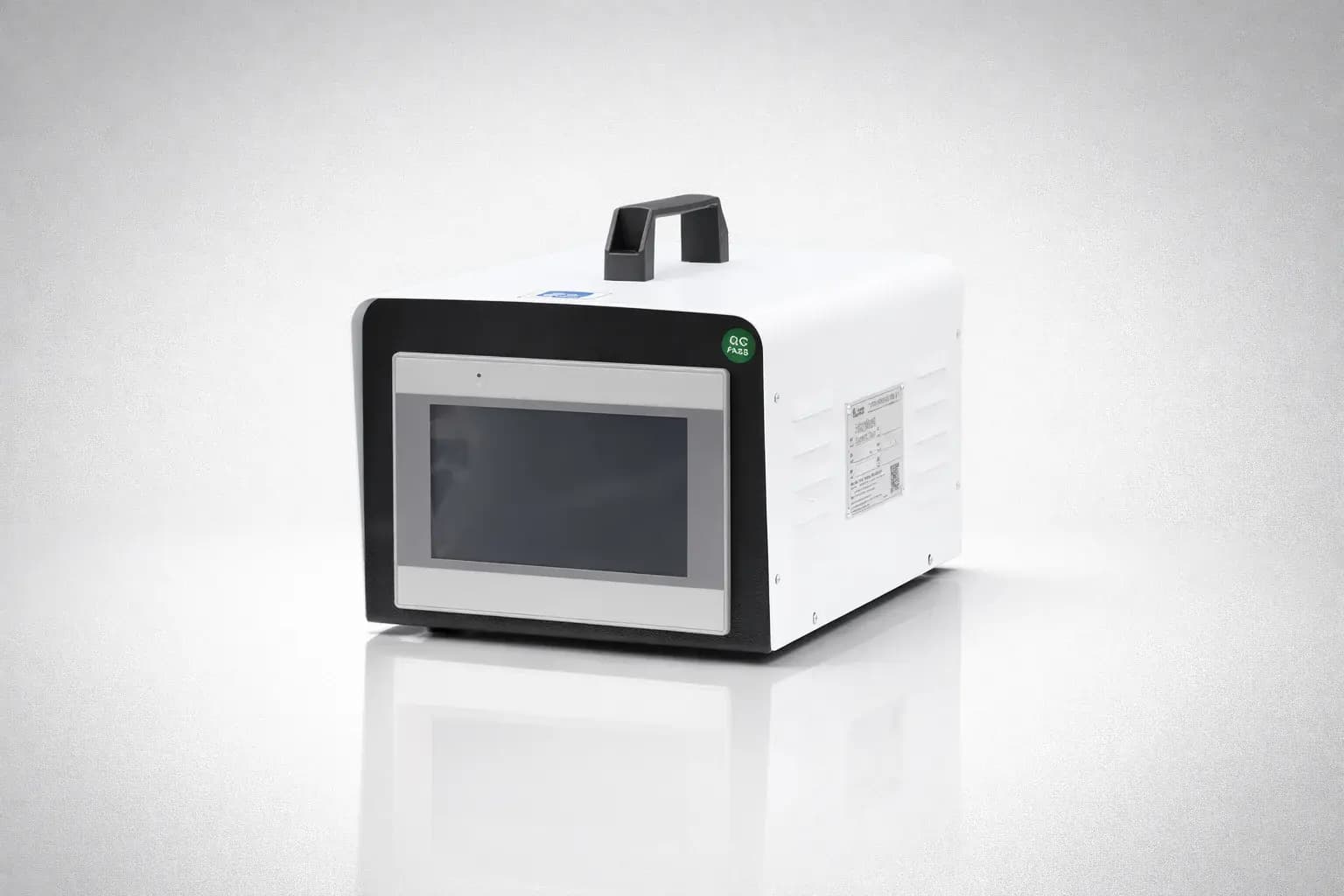

PLC touch screen controller delivers higher control accuracy and stability. Capable of storing 50 recipes for fast formula switching and quick booting.
Modular design with standard detachable components for easy cleaning, disassembly and interchangeability. Roof-shaped quick-change system prevents granulate leakage during removal.
High-accuracy hybrid stepping motor with wide output range and direct drive design - no gearbox required, ensuring long service life and maintenance-free operation
SUS304 stainless steel screw for superior durability and corrosion resistance
PLC touch screen controller delivers higher control accuracy and stability, with capacity to store 50 recipes for fast formula switching
Modular design with standard detachable components for easy cleaning, disassembly and interchangeability - roof-shaped quick-change system prevents granulate leakage during removal
Output
Single color
Motor
0.3 KW
Screw Diameter
12mm
Hopper Capacity
13L
Mixing Power
60-90W
Net Weight
20kg
Output
Double color
Motor
0.3x2 KW
Screw Diameter
12mm
Hopper Capacity
13L
Mixing Power
60-90W
Net Weight
25kg
Output
Triple color
Motor
0.3x3 KW
Screw Diameter
12mm
Hopper Capacity
13L
Mixing Power
60-90W
Net Weight
30kg
Certified Quality Standards
Our engineering team can help you configure the perfect production line for your specific requirements.
